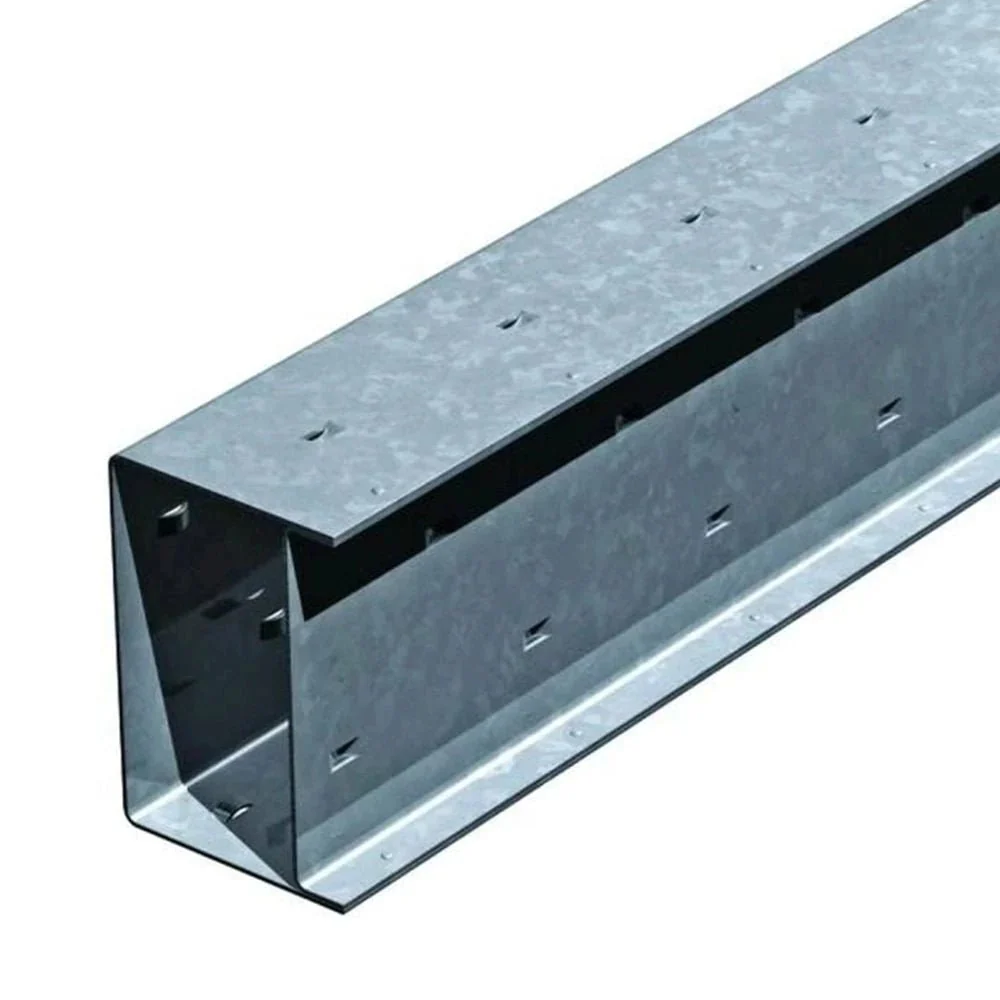

Birtley Heavy Duty Internal Wall Box Lintel 100mm SB140HD
Birtley Heavy Duty Internal Wall Box Lintel SB140HD
Loadbearing Walls
Cavity: 140mm – Internal block wall (plastered)
Insulated version available.
Features
- We are the only lintel manufacturer to hot-dip galvanise after fabrication providing up to 50% more zinc protection than other approved coatings
- Supergalv coating offers a superior life expectancy
- Post-fabrication galvanizing leaves no surface with inferior paint protection
- Available in span lengths from 750mm to 3600mm.
Product Attributes
Brand: Birtley
Generic Ref: SB140HD
Product Range: Single Leaf Internal Walls
Product Type: Heavy Duty Internal Wall Box Lintel - 140mm Block
European Standard/ETA: BS EN845-2:2013+A1:2016
Test Standard: EN846-9:2000/2016
Notified Body: Lucideon Ltd (NB 1289)
Material: Mild Steel S275JR to BS EN10025-2:2004
Coating/Finish/Colour: 65µm Hot Dip Galvanised to BS EN ISO 1461:2009
Thermal Performance: Contact us for information
Insulation: OPTIONAL - Expanded Polystyrene - BREEAM rating A+
Fire Rating: 60 mins (with 2 coat plaster finish)
1. Installation requirement: Bed fully on bricklaying mortar
2. Installation requirement: Must be used with a cavity tray - External walls only
3. Installation requirement: 150mm Minimum end bearing
Sales Qty: 1
Packaging weight: 0
1. Features: Supergalv coating offers superior life expectancy
3. Features: Structural grade steel to EN10025
Option 1: Alternative material options: Ultragalv coating (150µm), Stainless Steel 1.4301 (304)
