Catnic CG110/100 125mm Cavity Wall Lintel

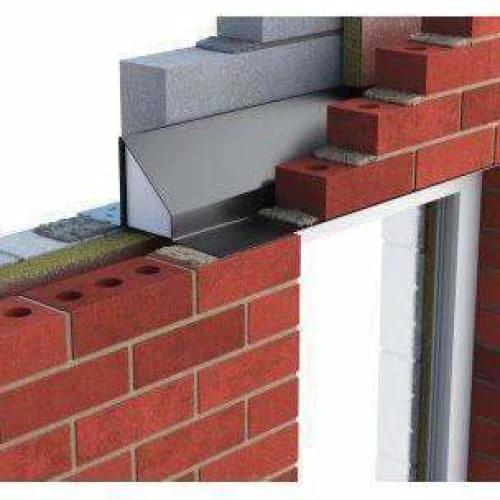

Catnic CG110/100 125mm Cavity Wall Lintel is a standard duty steel lintel for use in cavity walls with 110mm to 125mm cavities. It supports inner leaf widths from 125mm to 140mm and outer leaves from 100mm to 102mm. Manufactured from galvanised steel and finished with a black powder coating, it resists weather and mechanical damage. Built-in damp proof course (DPC) and staggered slot plaster key enhance insulation and bonding. Available in lengths from 900mm to 3000mm. Product weight ranges from 6430g to 43160g depending on size.
Key Features
- Manufacturer: Catnic
- Supports 110–125mm cavity walls with 100–102mm outer leaves
- Galvanised steel with powder coating for durability
- Built-in DPC and integral plaster key design
- Available from 900mm to 3000mm in 300mm increments
- Weight range: 6.43kg – 43.16kg depending on length
- Safe working load up to 26kN
- Conforms to standard duty loading conditions
- Datasheet
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Catnic CG110/100 125mm Cavity Wall Lintel
Catnic CG110/100 125mm Cavity Wall Lintel
Catnic CG110/100 125mm Cavity Wall Lintel is a standard duty steel lintel for use in cavity walls with 110mm to 125mm cavities. It supports inner leaf widths from 125mm to 140mm and outer leaves from 100mm to 102mm. Manufactured from galvanised steel and finished with a black powder coating, it resists weather and mechanical damage. Built-in damp proof course (DPC) and staggered slot plaster key enhance insulation and bonding. Available in lengths from 900mm to 3000mm. Product weight ranges from 6430g to 43160g depending on size.
Key Features
- Manufacturer: Catnic
- Supports 110–125mm cavity walls with 100–102mm outer leaves
- Galvanised steel with powder coating for durability
- Built-in DPC and integral plaster key design
- Available from 900mm to 3000mm in 300mm increments
- Weight range: 6.43kg – 43.16kg depending on length
- Safe working load up to 26kN
- Conforms to standard duty loading conditions

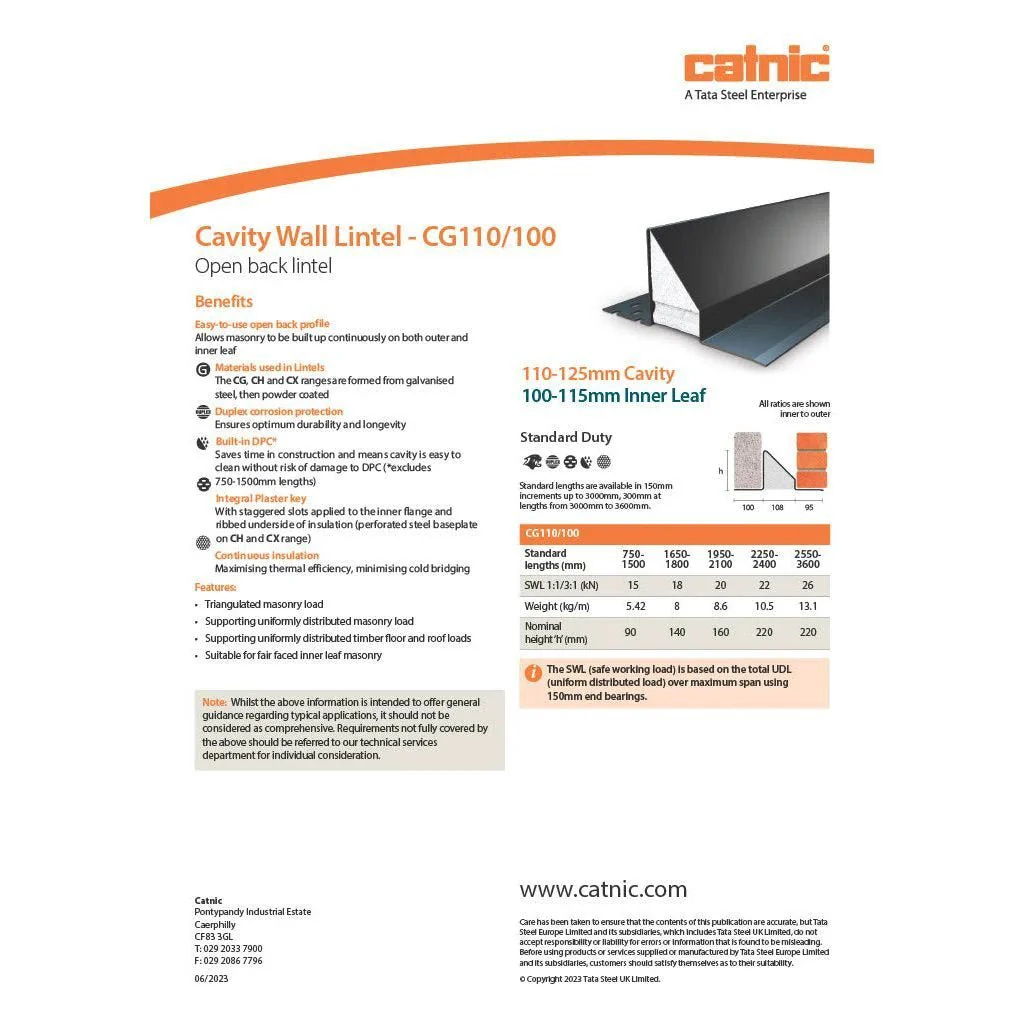

- Datasheet
Original: $77.35
-65%$77.35
$27.07Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Catnic CG110/100 125mm Cavity Wall Lintel is a standard duty steel lintel for use in cavity walls with 110mm to 125mm cavities. It supports inner leaf widths from 125mm to 140mm and outer leaves from 100mm to 102mm. Manufactured from galvanised steel and finished with a black powder coating, it resists weather and mechanical damage. Built-in damp proof course (DPC) and staggered slot plaster key enhance insulation and bonding. Available in lengths from 900mm to 3000mm. Product weight ranges from 6430g to 43160g depending on size.
Key Features
- Manufacturer: Catnic
- Supports 110–125mm cavity walls with 100–102mm outer leaves
- Galvanised steel with powder coating for durability
- Built-in DPC and integral plaster key design
- Available from 900mm to 3000mm in 300mm increments
- Weight range: 6.43kg – 43.16kg depending on length
- Safe working load up to 26kN
- Conforms to standard duty loading conditions
- Datasheet
