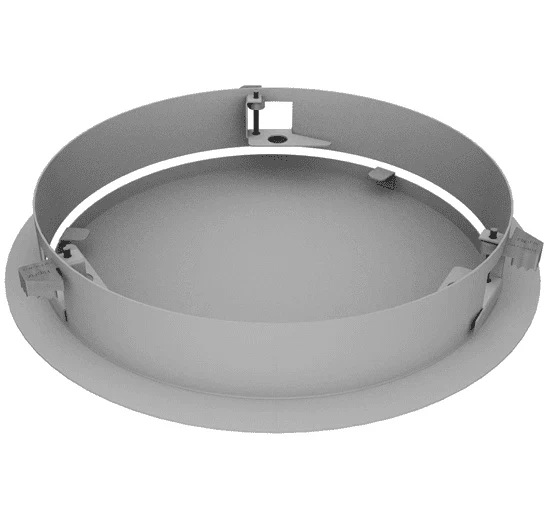

FlipFix Circular Access Panel – Non-Fire Rated Picture Frame

The FlipFix Circular Access Panel, available at Trade Counter Direct, offers a practical solution for inspection access in walls. Featuring a robust metal-faced door and a 25 mm picture frame, this panel is designed for straightforward installation using the innovative FlipFix fitting system, which eliminates the need for additional materials such as wood, screws, or glue.

Manufactured from Zintec steel and finished in RAL9010 powder coating, the FlipFix Circular Access Panel ensures durability and a clean appearance. Supplied with a pop-out cutting template, it is ideal for inspection purposes and is not intended for personal access. The panel is suitable for use in walls and is supplied without a lock.

Features

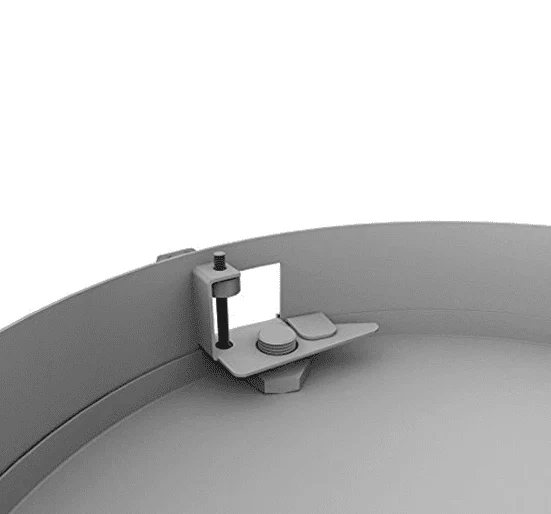

• Quick and easy installation with the FlipFix device – no need for extra wood, screws, or glue
• Supplied with a pop-out cutting template for precise fitting
• Constructed from durable Zintec steel
• 25 mm picture frame for a neat finish
• Flush metal door with screw pin hinge and hex turn screw lock
• Fully demountable plasterboard door
• Powder coated in RAL9010 (30% gloss) for a clean appearance
• Suitable for wall installation only
• Saves up to 80% of installation time compared to standard access panels

Specifications

Range/Series	FlipFix Circular Access Panel – Non-Fire Rated Picture Frame
Sizes Available	200 mm diameter, 300 mm diameter
Frame Depth	56 mm
Frame Type	25 mm picture frame
Material	Zintec steel
Door Type	Flush metal door, fully demountable plasterboard
Finish	Powder coated RAL9010 (30% gloss)
Lock Type	Hex turn screw lock
Hinge Type	Screw pin hinge
Application	Wall inspection access (not suitable for personal access)
Installation Method	FlipFix fitting device (no additional wood, screws, or glue required)
