MDPE Wall Flange 32mm - 3/4" BSPF

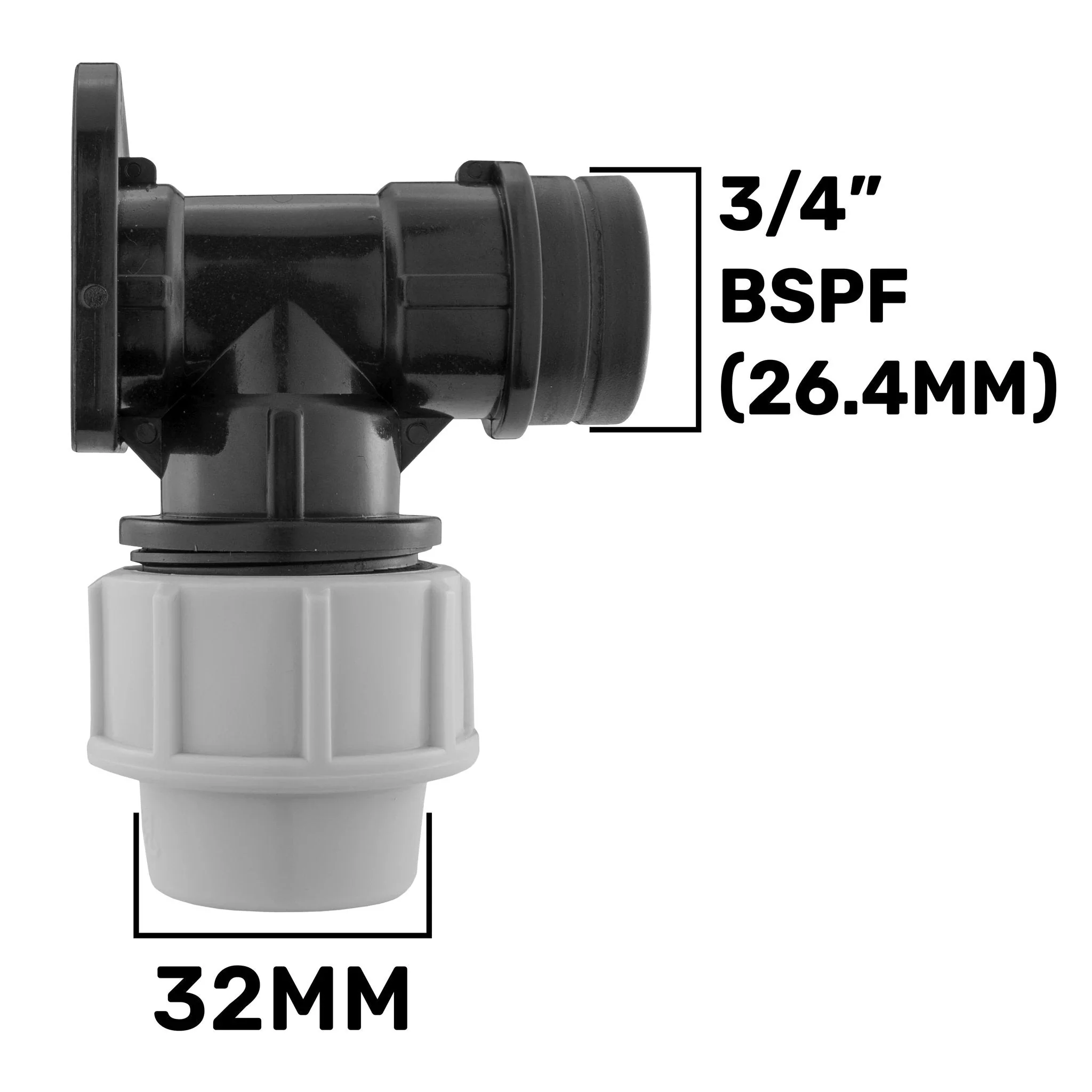

MDPE Wall Flange 32mm to 3/4" BSPF is a compression fitting that lets you connect a 32mm MDPE pipe to a 3/4" BSP female thread, with a sturdy wall-facing mount for tidy, secure pipework. It’s aimed at tradespeople installing MDPE systems where a flush, wall-fixed connection is required.
The fitting uses MDPE material, recognised for durability, flexibility and chemical resistance, making it suitable for water supply, irrigation and light industrial use. It carries a PN10 pressure rating, meaning it is designed to withstand up to 10 bar (1 MPa or roughly 145 psi) when paired with compatible MDPE pipe. This combination helps maintain system integrity under typical pressure conditions found in domestic and light commercial plumbing.
Key benefits include leak-free joints when installed correctly and long service life in a range of environments. The wall flange design provides a robust mounting point that helps minimise movement and strain on the pipe, reducing the risk of leaks at the junction. MDPE PN10 fittings are corrosion resistant, which contributes to dependable performance in exposed or damp locations. Applications span water supply, irrigation, gas distribution and various industrial processes, offering versatility for site pockets where a wall-fixed outlet is advantageous.
How to install: ensure the cut end of the 32mm MDPE pipe is square and free from burrs. Insert the pipe into the MDPE side of the fitting until seated fully. Tighten the compression connection according to the manufacturer's guidelines to achieve a sealed joint. On the BSP side, apply an appropriate sealant or PTFE tape to the 3/4" BSP female thread if required by installation codes, then assemble to the corresponding male threaded component. Always follow local regulations and best practice for securing pipework to walls or panels, and check for leaks after commissioning.
Choose this wall flange variant when you need a neat, secure transition from MDPE to a threaded outlet that terminates on a wall or panel. Its combination of corrosion resistance, pressure capability and straightforward installation makes it a practical option for reliably routing MDPE piping in accessible or constrained spaces.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
MDPE Wall Flange 32mm - 3/4" BSPF
MDPE Wall Flange 32mm - 3/4" BSPF
MDPE Wall Flange 32mm to 3/4" BSPF is a compression fitting that lets you connect a 32mm MDPE pipe to a 3/4" BSP female thread, with a sturdy wall-facing mount for tidy, secure pipework. It’s aimed at tradespeople installing MDPE systems where a flush, wall-fixed connection is required.
The fitting uses MDPE material, recognised for durability, flexibility and chemical resistance, making it suitable for water supply, irrigation and light industrial use. It carries a PN10 pressure rating, meaning it is designed to withstand up to 10 bar (1 MPa or roughly 145 psi) when paired with compatible MDPE pipe. This combination helps maintain system integrity under typical pressure conditions found in domestic and light commercial plumbing.
Key benefits include leak-free joints when installed correctly and long service life in a range of environments. The wall flange design provides a robust mounting point that helps minimise movement and strain on the pipe, reducing the risk of leaks at the junction. MDPE PN10 fittings are corrosion resistant, which contributes to dependable performance in exposed or damp locations. Applications span water supply, irrigation, gas distribution and various industrial processes, offering versatility for site pockets where a wall-fixed outlet is advantageous.
How to install: ensure the cut end of the 32mm MDPE pipe is square and free from burrs. Insert the pipe into the MDPE side of the fitting until seated fully. Tighten the compression connection according to the manufacturer's guidelines to achieve a sealed joint. On the BSP side, apply an appropriate sealant or PTFE tape to the 3/4" BSP female thread if required by installation codes, then assemble to the corresponding male threaded component. Always follow local regulations and best practice for securing pipework to walls or panels, and check for leaks after commissioning.
Choose this wall flange variant when you need a neat, secure transition from MDPE to a threaded outlet that terminates on a wall or panel. Its combination of corrosion resistance, pressure capability and straightforward installation makes it a practical option for reliably routing MDPE piping in accessible or constrained spaces.
Original: $6.67
-65%$6.67
$2.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MDPE Wall Flange 32mm to 3/4" BSPF is a compression fitting that lets you connect a 32mm MDPE pipe to a 3/4" BSP female thread, with a sturdy wall-facing mount for tidy, secure pipework. It’s aimed at tradespeople installing MDPE systems where a flush, wall-fixed connection is required.
The fitting uses MDPE material, recognised for durability, flexibility and chemical resistance, making it suitable for water supply, irrigation and light industrial use. It carries a PN10 pressure rating, meaning it is designed to withstand up to 10 bar (1 MPa or roughly 145 psi) when paired with compatible MDPE pipe. This combination helps maintain system integrity under typical pressure conditions found in domestic and light commercial plumbing.
Key benefits include leak-free joints when installed correctly and long service life in a range of environments. The wall flange design provides a robust mounting point that helps minimise movement and strain on the pipe, reducing the risk of leaks at the junction. MDPE PN10 fittings are corrosion resistant, which contributes to dependable performance in exposed or damp locations. Applications span water supply, irrigation, gas distribution and various industrial processes, offering versatility for site pockets where a wall-fixed outlet is advantageous.
How to install: ensure the cut end of the 32mm MDPE pipe is square and free from burrs. Insert the pipe into the MDPE side of the fitting until seated fully. Tighten the compression connection according to the manufacturer's guidelines to achieve a sealed joint. On the BSP side, apply an appropriate sealant or PTFE tape to the 3/4" BSP female thread if required by installation codes, then assemble to the corresponding male threaded component. Always follow local regulations and best practice for securing pipework to walls or panels, and check for leaks after commissioning.
Choose this wall flange variant when you need a neat, secure transition from MDPE to a threaded outlet that terminates on a wall or panel. Its combination of corrosion resistance, pressure capability and straightforward installation makes it a practical option for reliably routing MDPE piping in accessible or constrained spaces.
