Shed Base Grid 500mm x 500mm x 40mm

Introduction

The Shed Base Grid 500mm x 500mm x 40mm delivers a fast, durable foundation for garden buildings. Designed for tradespeople, it combines strong support with permeable drainage and a straightforward install process.

Features

• Size and coverage 500mm by 500mm by 40mm; grid coverage 4 grids per square metre.
• Material made from 100 percent recycled plastic, including PP and HDPE.
• Construction ribbed wall thickness 3.5mm for robust load bearing.
• Drainage built in to help manage moisture and protect the structure.
• Strength compression resistance 500 tonnes per square metre; axle load capacity 25 tonnes.
• Temperature range stable from minus 50 degrees Celsius to plus 90 degrees Celsius.
• Fill recommended fill of 10 to 30 millimetre angular gravel.
• Colour black for durability and discreet appearance.
• Compliance SuDS compliant and Part M compliant; tree safe and non toxic.
• Dimensions and spacing cellular space 68 millimetres by 68 millimetres.
• Manufacture made in the United Kingdom with reusable, chemically inert materials.
• Slope tolerance accepts up to 25 percent grade or 15 degrees.

Benefits

• Fast installation you can lay a stable foundation in under an hour, with minimal site disruption.
• No curing time unlike concrete, the base is ready to use as soon as it is level and filled.

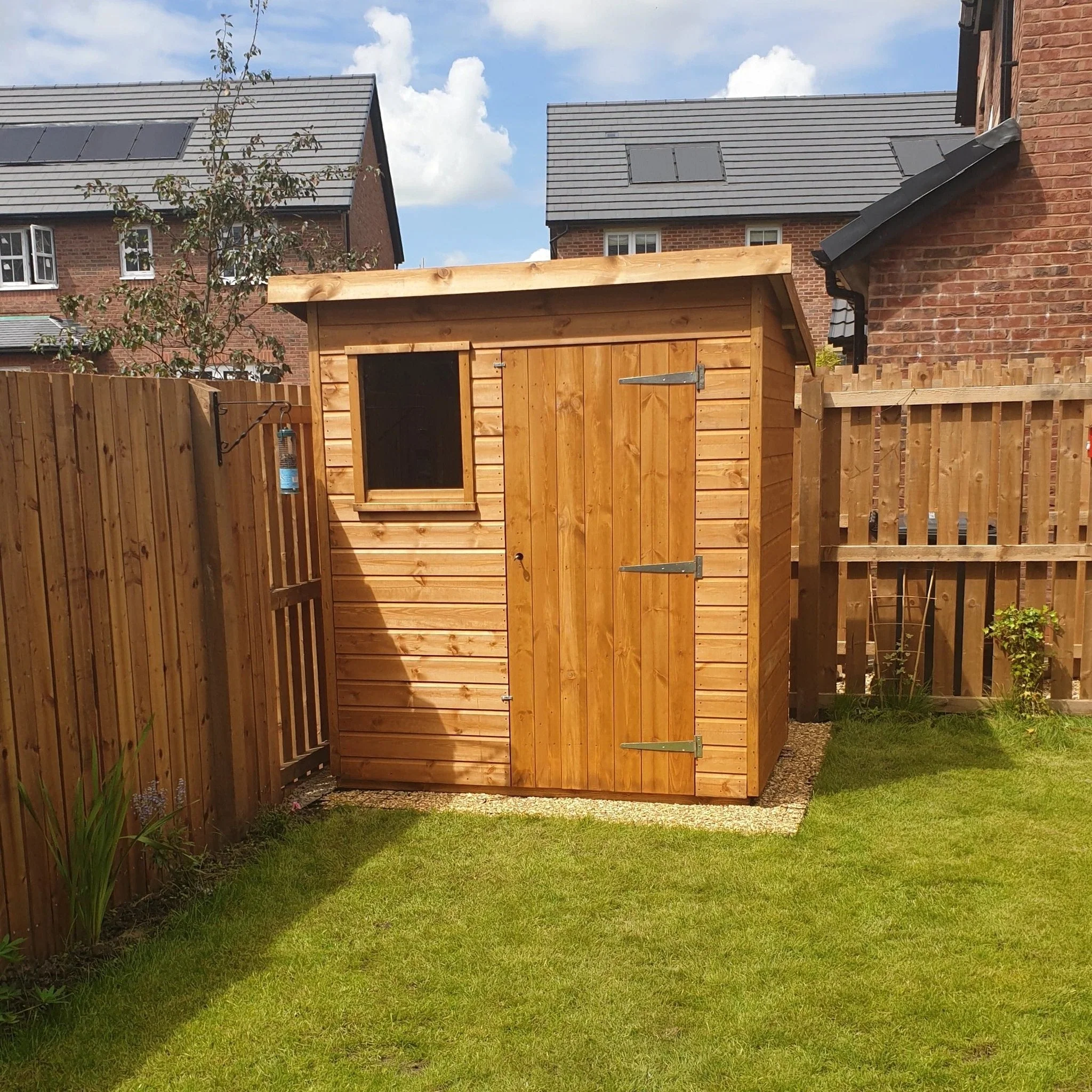

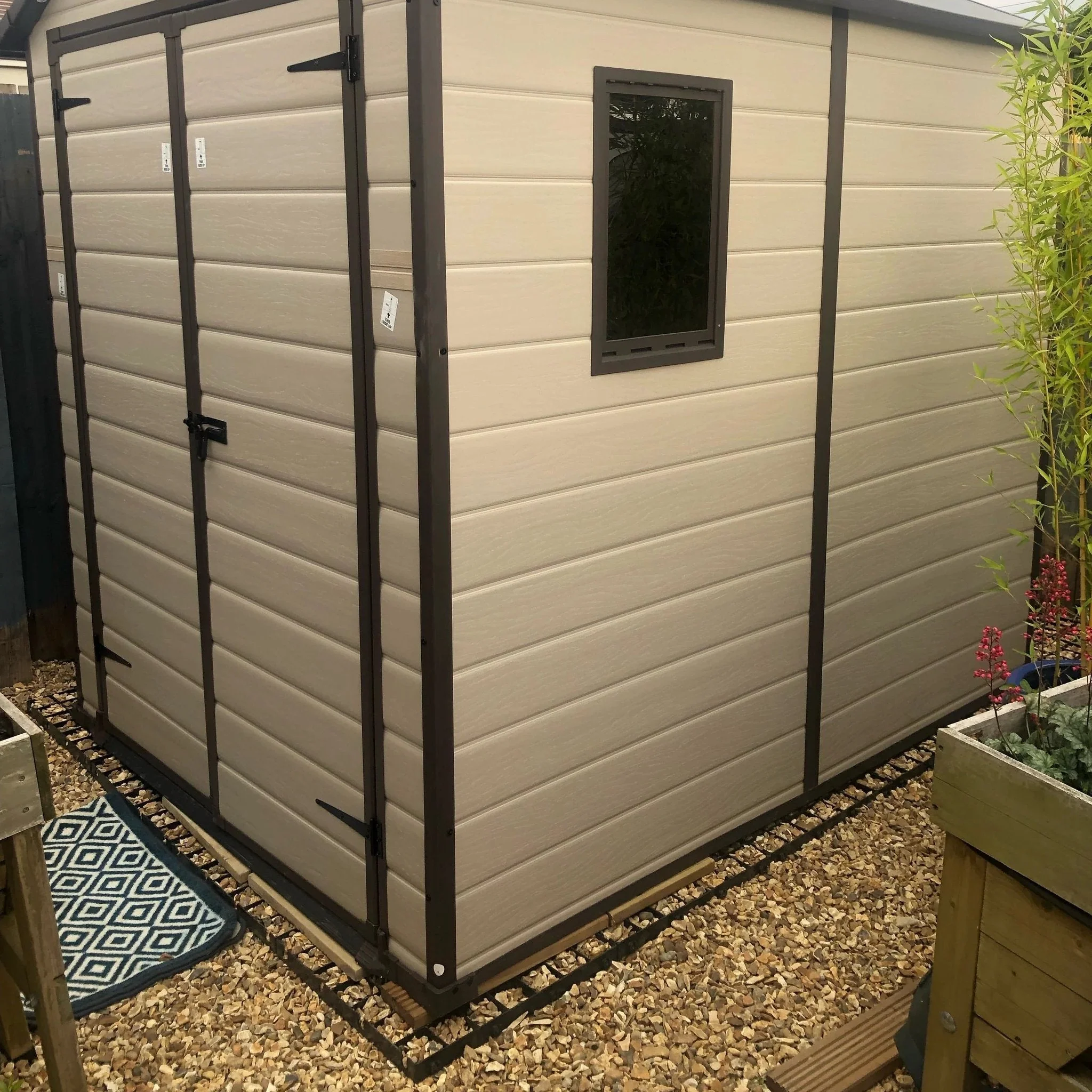

• Supports any size structure from a compact 6x4 shed to large log cabins and timber workshops.
• Permeable drainage helps prevent water pooling and protects timber, extending the life of your building.
• Durable and reliable heavy duty design handles tough workloads and varying ground conditions.
• Environmentally responsible crafted from recycled plastics and designed for reuse, with safe, non toxic materials.
• Easy to level a stable, even base is achieved more quickly than traditional methods, reducing site time and labour.
