Wall Flange Kit 20mm MDPE – Snap-On Male & Inline Valve is a ready-to-fit solution for connecting MDPE pipes to an external water outlet. Built for tradespeople, it delivers a durable, weather‑resistant outdoor connection that’s straightforward to install on site.

The kit includes three components:

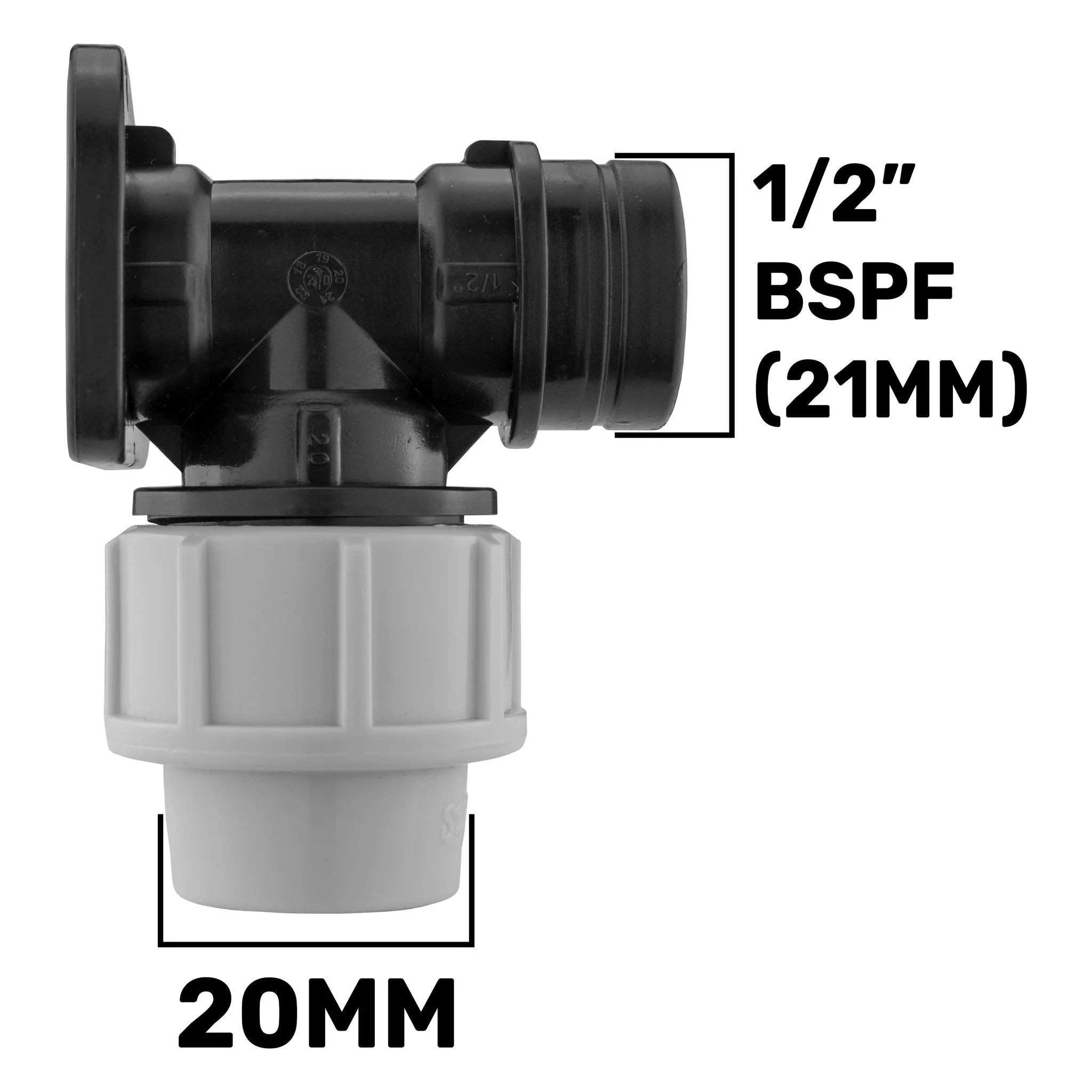

• 1 x MDPE wall flange 20mm – ½" BSPF (MDPEWF20-12BSPF)
• 1 x MDPE valve 20mm (MDPEVALVE20)
• 1 x Click Lock BSP male tap connector (TAPCON12BSPM001WL)

Key features and how it helps you:

• MDPE PN10 fittings are rated to withstand up to 10 bar (approx. 145 psi), suitable for typical domestic outdoor water supply and irrigation tasks.
• Compression connections on the wall flange provide a tight seal without specialised tools, helping reduce installation time on site.
• The ½" BSPM inlet on the tap connector accepts standard taps and hose attachments; the click‑lock outlet allows quick, secure hose connections with minimal leakage risk.
• The wall flange design enables neat, surface‑mounted tie‑in to external outlets, improving durability and weather resistance at the outdoor interface.
• Made from robust MDPE material, the kit resists corrosion and chemical exposure common in irrigation and outdoor water systems.

Notes for installation and compatibility: PTFE tape is not supplied with this kit and should be sourced separately for BSP thread sealing if required. Use appropriate sealant and follow standard water industry practices for outdoor connections.
