The Wall Flange Kit 20mm MDPE with Nylon ½” Barb Tap and Quick Connect Outlet is a compact, wall‑mounted connection for MDPE piping. It’s designed for tradespeople installing water supply and irrigation lines, offering a robust, leak‑tight access point without bespoke fabrication.

Kit contents:

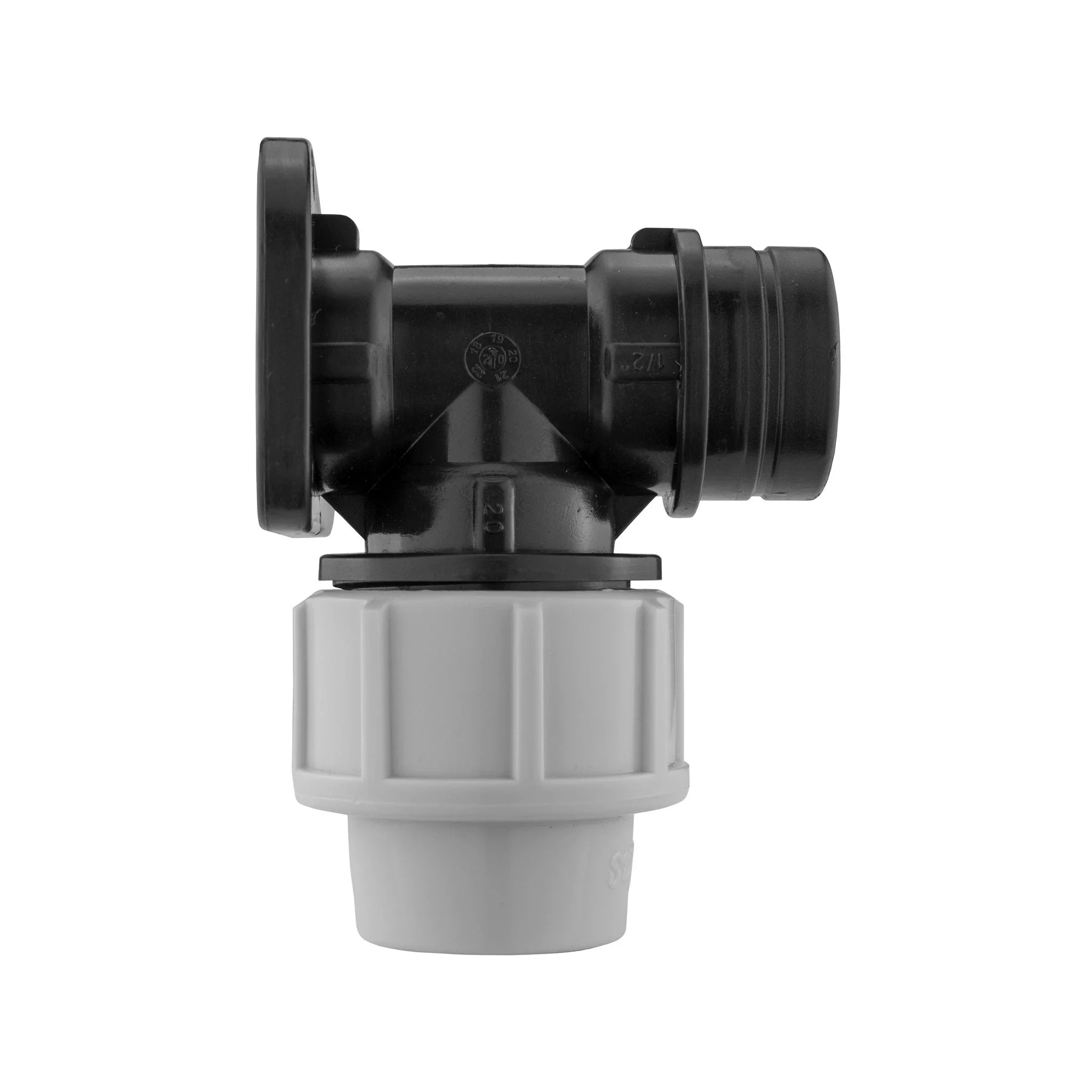

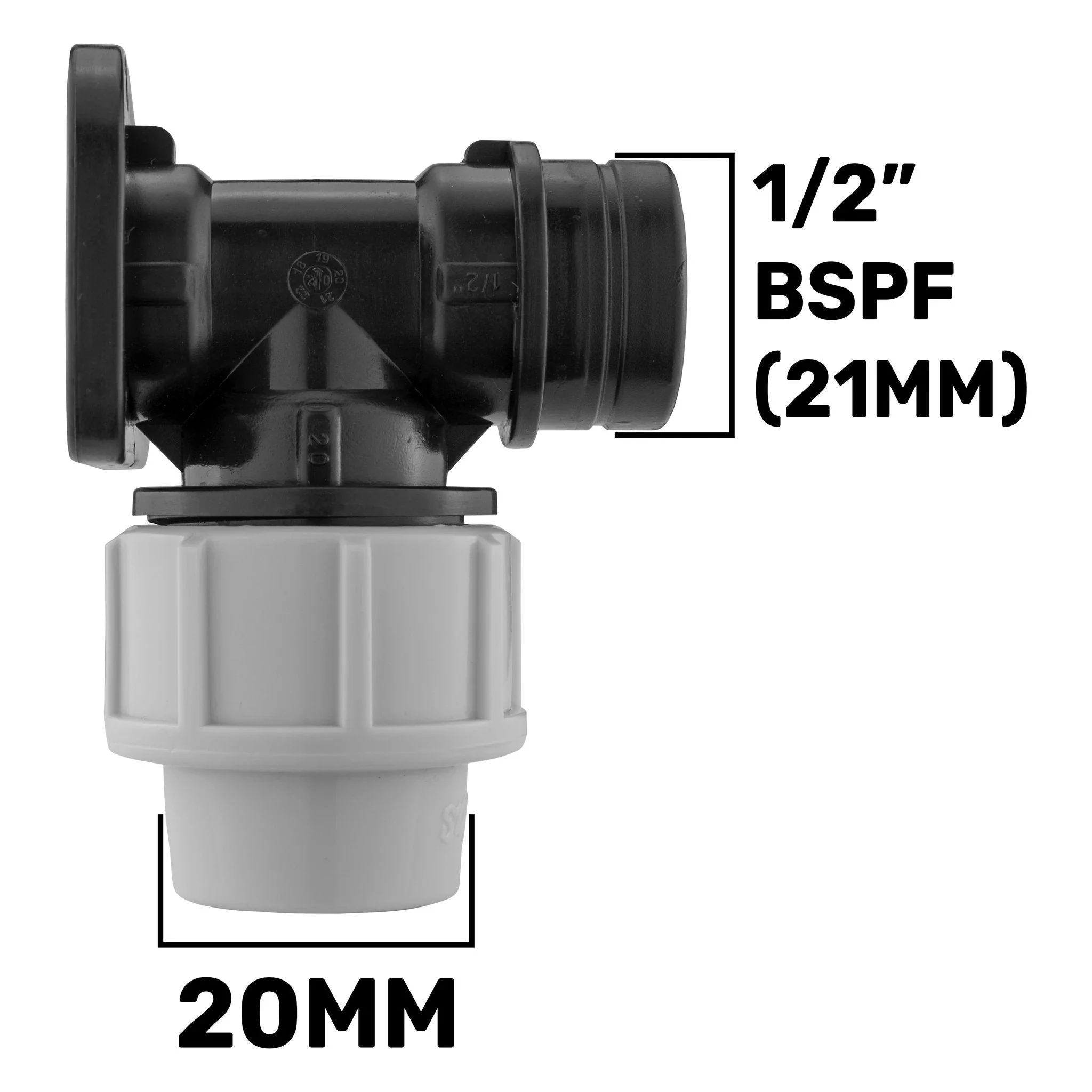

• MDPE Wall Flange 20mm – 1/2" BSPF
• Nylon 1/2" barb garden tap (black)
• Female tap connector 3/4" BSPF with click‑lock quick connect outlet

Key features

• MDPE PN10 fittings withstand up to 10 bar (≈145 psi), suitable for standard water supply and irrigation pressures.
• Compression connections provide a tight, leak‑free seal without soldering or specialist tooling.
• Wall flange secures MDPE pipe to a flat surface, creating a neat, protected installation point.
• Nylon tap offers durable operation and corrosion resistance in outdoor conditions.
• 3/4" BSPF female connector with quick‑connect outlet accepts compatible quick‑connect attachments for fast hose or fixture linkage.

Ideal uses

• Garden water supplies and irrigation lines
• Outbuildings, sheds, or wall‑mounted taps in yards
• Retrofits where a reliable, compact connection is required

Installation tips

• Cut MDPE pipe square and deburr ends before insertion.
• Slide pipe into the wall flange and tighten the compression nut until seated.
• Thread the nylon tap onto the 1/2" BSPF male connection and tighten securely.
• Attach a compatible quick‑connect outlet to the 3/4" BSPF female connector and test for leaks at a safe pressure within the PN10 rating.
