The Wall Flange Kit 25mm MDPE + 25mm MDPE Valve + 13mm Barbed Geka Set is a ready-to-install MDPE connection package for plumbers and site installers needing a wall-mounted feed with a built-in valve and quick-connect fittings.

This kit brings together four components designed for MDPE piping: a 25mm MDPE wall flange with a ¾” BSP thread, a 25mm MDPE valve, a 13mm barb Geka fitting and a ¾” BSP Geka fitting. MDPE fittings are chosen for their durability, flexibility and chemical resistance, making them suitable for water supply, irrigation and light industrial use. The wall flange provides a secure mount to flat surfaces, while the valve enables straightforward flow control within the MDPE network.

• Contents:
  • MDPE Wall Flange 25mm – ¾" BSP (MDPEWF25-34BSPF)
  • MDPE Valve 25mm (MDPEVALVE25)
  • Geka Type Fitting 13mm Barb (GK13MM)

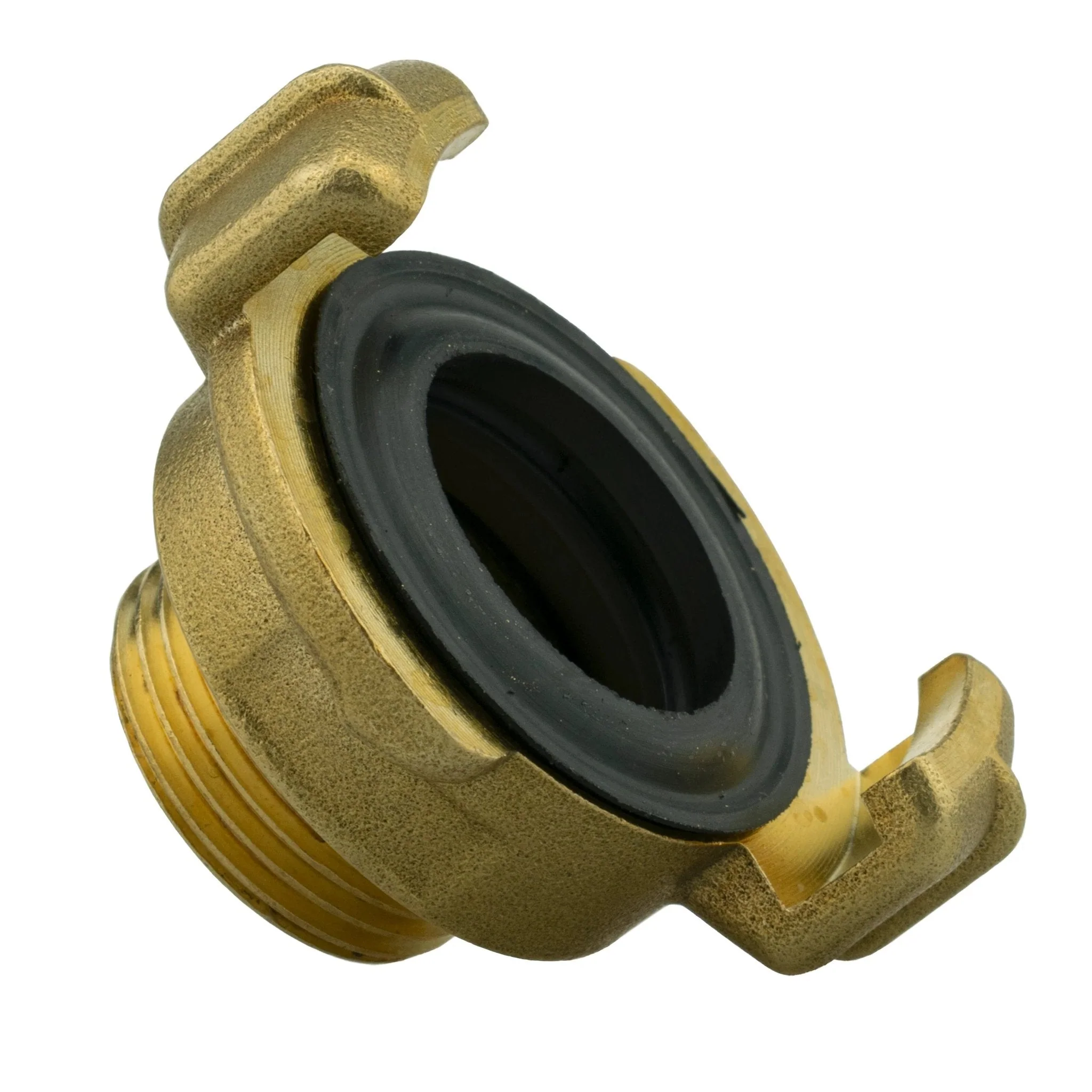

  • Geka Type Fitting ¾" BSP (GK34BSPM)

Key specifications and benefits:

• MDPE compression connections provide a tight, leak-free seal without the need for specialist tooling or equipment.
• PN10 rated components withstand up to 10 bar (approximately 145 psi), offering reliable performance in typical domestic and light commercial applications.
• Geka fittings are brass with robust rubber seals, designed for quick, tool-free assembly and disassembly, reducing downtime on site.
• 13mm Barb and ¾" BSP options enable versatile connections to hoses and MDPE pipework within a single fitting set.
• MDPE material offers good chemical resistance and durability, helping extend service life in varied environments.

Ideal use cases:

• Wall-fed water supply connections for external taps or retrofit projects.
• Irrigation and garden plumbing where a secure wall mount and flow control are advantageous.
• Light industrial or site plumbing installations requiring quick connections and reliable seals.

This kit provides a practical, field-ready solution for MDPE piping systems, combining a wall flange, valve and Geka fittings in one package to simplify ordering and installation.
